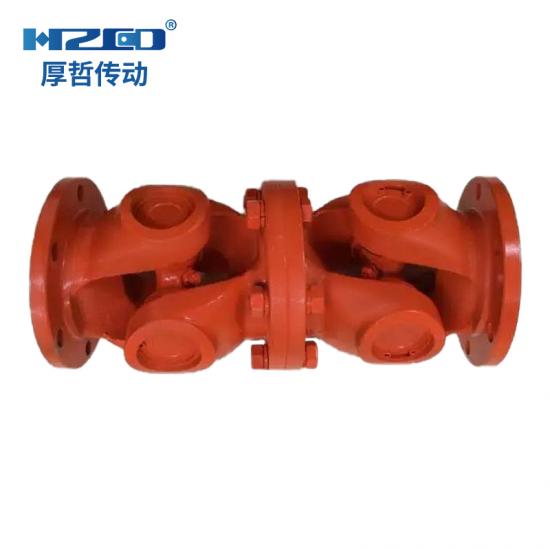

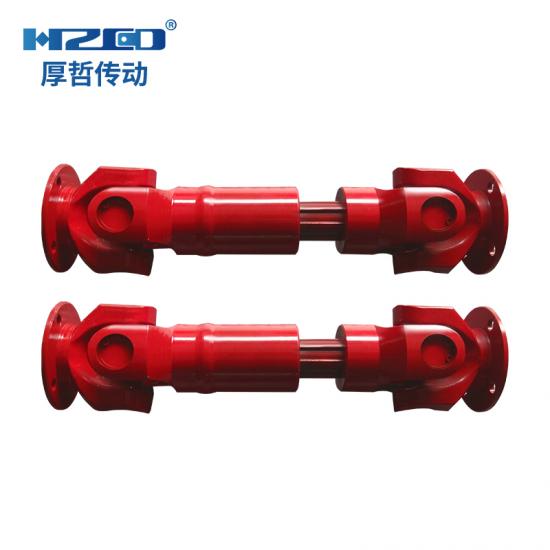

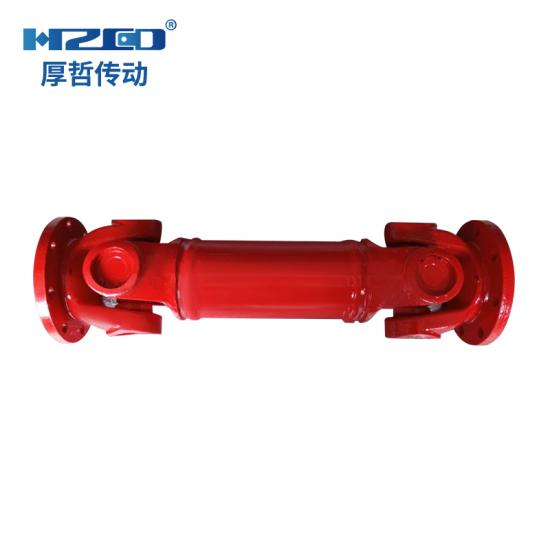

SWC Cross Axis Cardan Shaft Universal Joint Coupling
Structural Characteristics:
1. Reasonable structure, safe and reliable use.
2. The use of a single fork head, eliminating the bolt pressing housing this weak link, completely avoid the common bolt loosening or breaking caused by malignant damage events, service life than other types of couplings increased by 30% to 50%.
3. High carrying capacity.
4.Transmission efficiency is high, transmission efficiency is as high as 98.7% to 99.9%, for high-power transmission energy saving significantly, can reduce power consumption by 5% to 15%.
5. The transmission is stable, the noise is low, the general noise is 30 to 40 dB (A).
Installation Note：
1. When installing a single cross axis universal coupling, the main and driven end angle speeds vary, the main and driven axes can not be kept in sync, and their out-of-syncity varies with the β angle.
2. To achieve the same angular speed and synchronous rotation, a double-cross-axis universal coupling should be installed or used by a combination of two single-cross-axis universal couplings and an intermediate shaft.
Drawings：

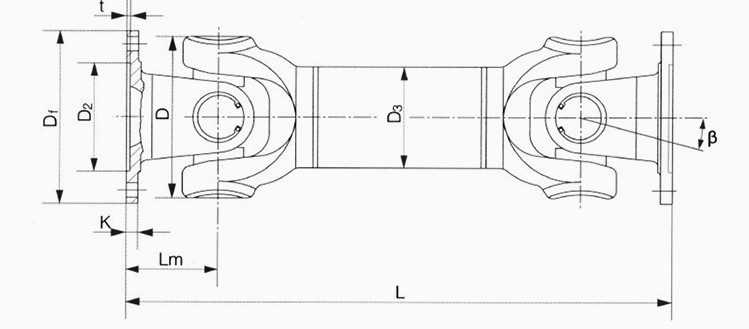

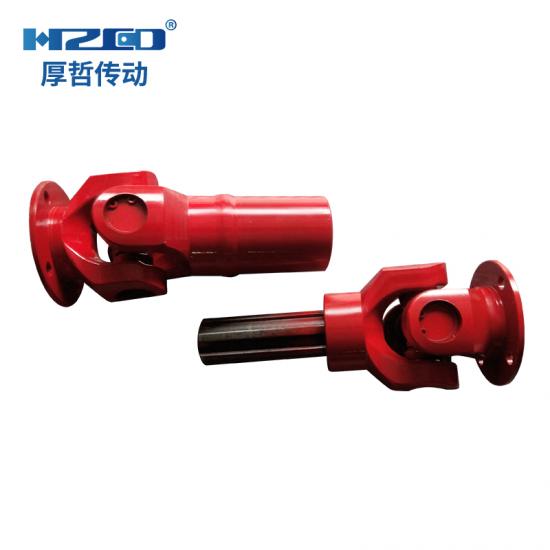

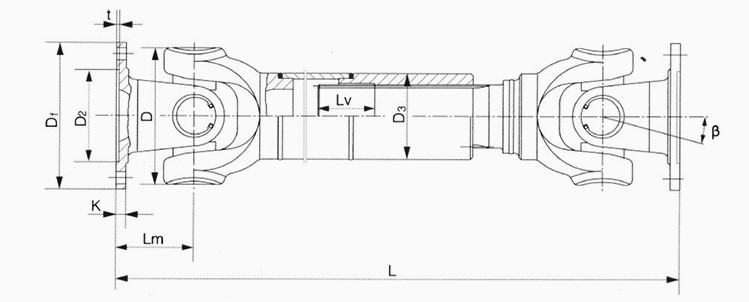

A Type Scalable Weld Cardan Shaft
B Type No-Scaling Weld Cardan Shaft

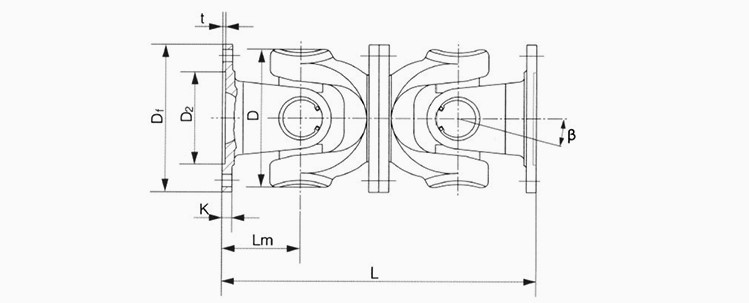

C Type No-Scaling Short Structure Cardan Shaft

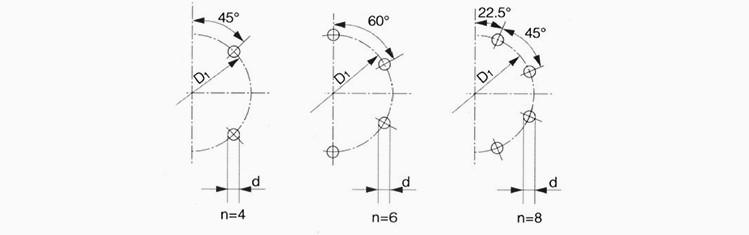

Flange Bolt Hole Sets

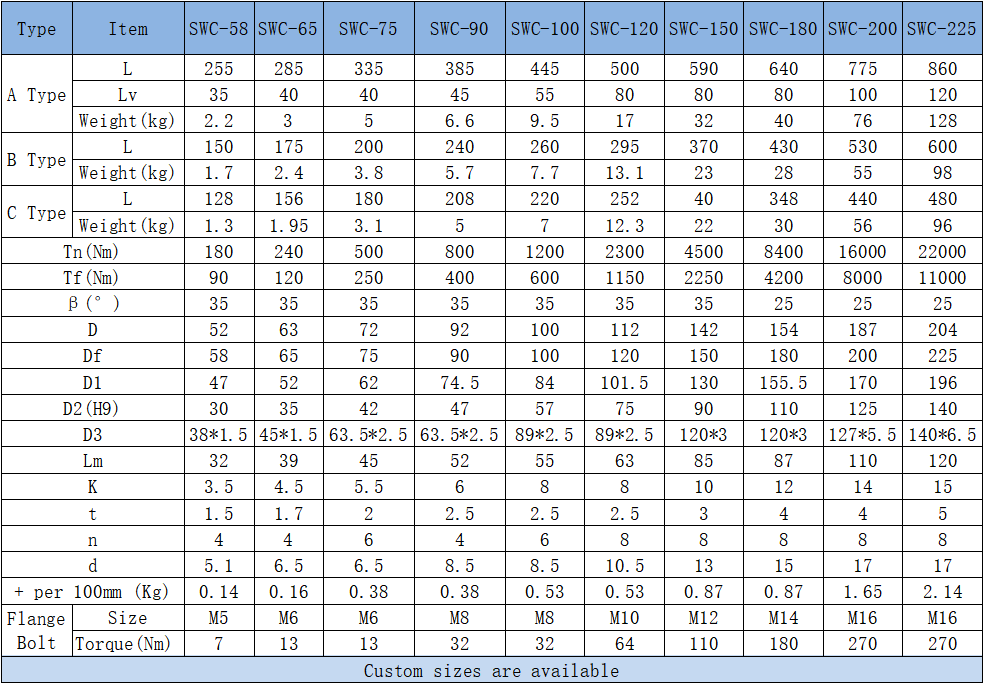

Parameter Sheets：
