Universal Joint

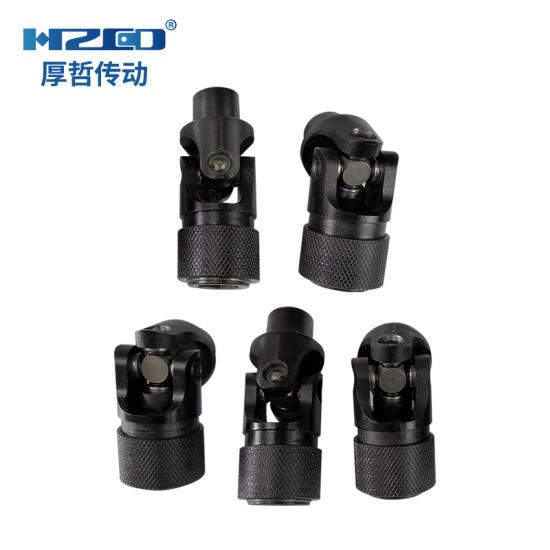

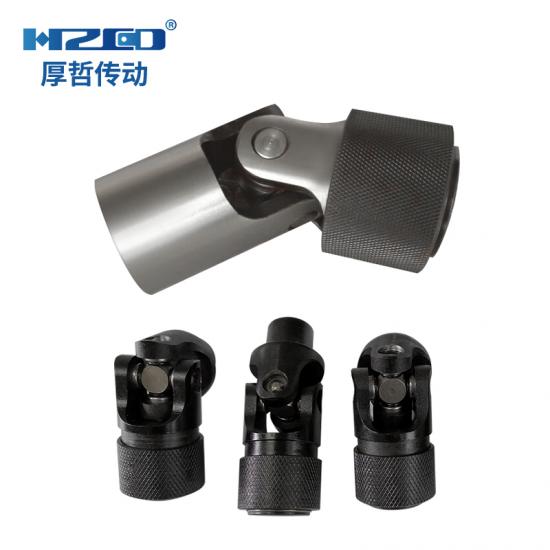

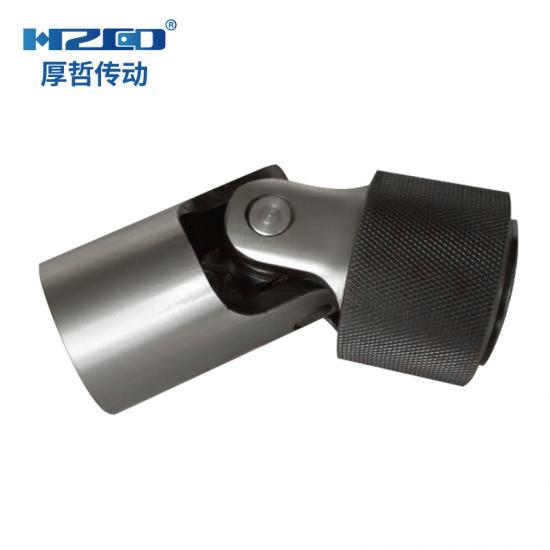

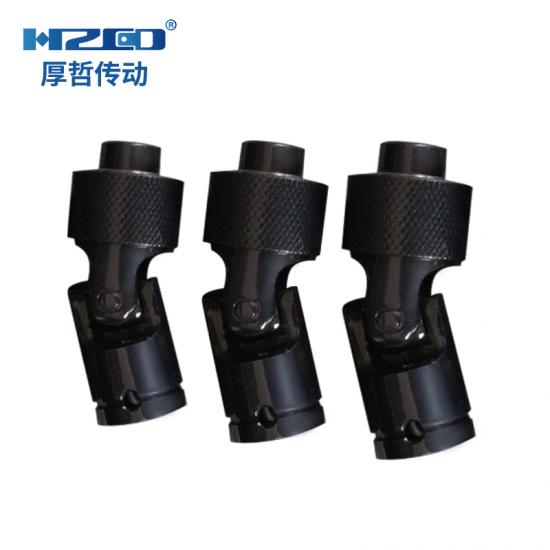

GR-HR Precision Universal Joint Coupling

A Small Universal Joint That Can Be Quickly Disassembled.

  • Brand:

    HZCD
  • Item NO.:

    GR-HR
  • Payment:

    EXW, FOB, CNF
  • Product Origin:

    FOSHAN, CN
  • Lead Time:

    15 DAYS
  • Order(MOQ):

    10

GR-HR Precision Universal Joint Coupling


Structural Characteristics:

1. Single-section universal section with quick locking function (removable).

2. GR Type with block structure Nmax=1000min-1

3. HR Type with bearing structure Nmax=4000min-1

4. The maximum rotation angle for each section is 45 degrees.

5. The quick locking device (drawing d2) is available only for finished H7 tolerances holes or hexagonal holes.


Installation Note:

1. When installing a single cross axis universal coupling, the main and driven end angle speeds vary, the main and driven axes can not be kept in sync, and their out-of-syncity varies with the β angle.

2. To achieve the same angular speed and synchronous rotation, a double-cross-axis universal coupling should be installed or used by a combination of two single-cross-axis universal couplings and an intermediate shaft.

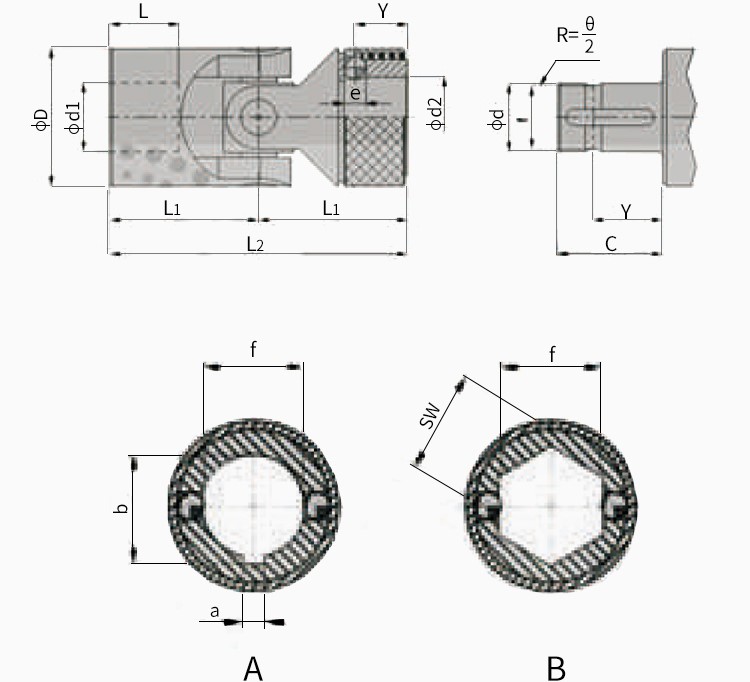

Drawings:

universal joint drawings

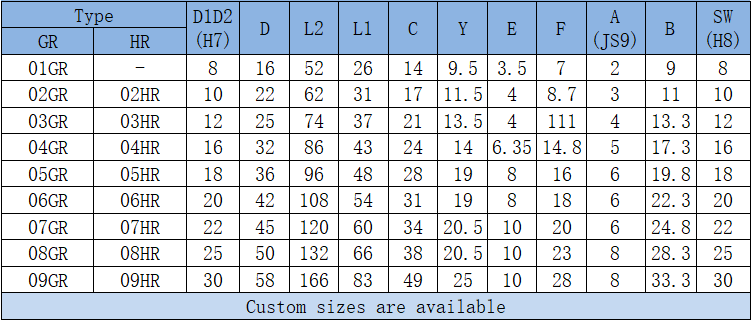

Parameter Sheets:

universal joint parameters
