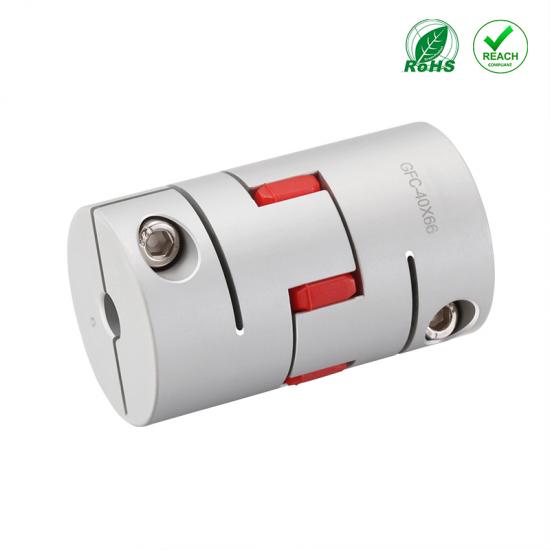

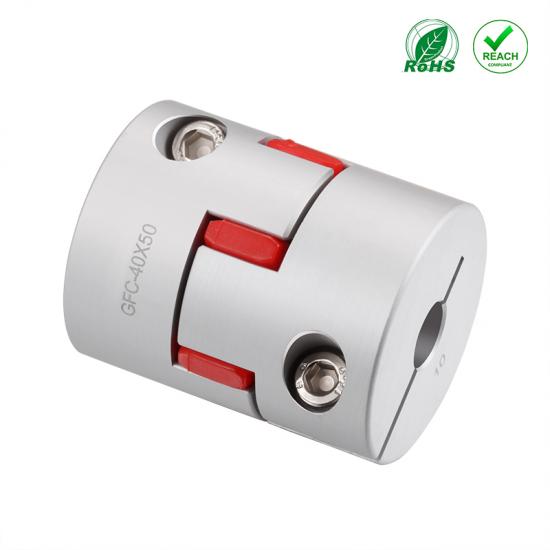

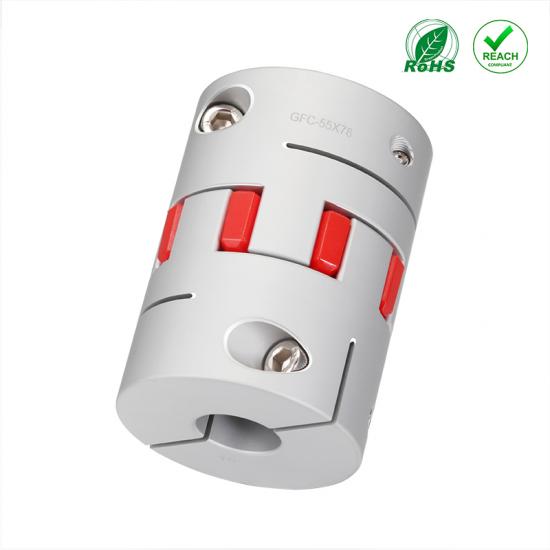

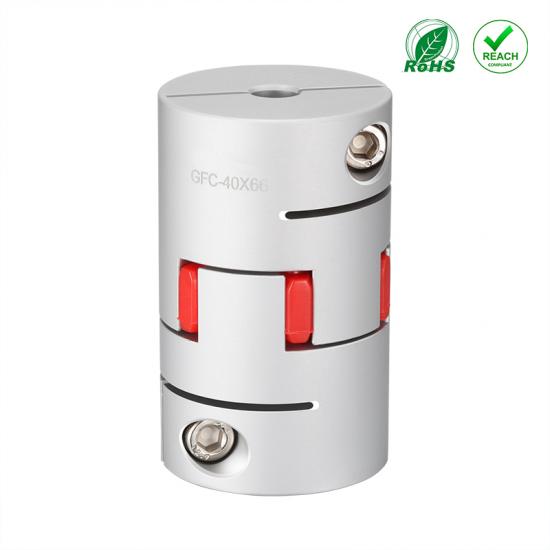

GFC Aluminum Alloy Plum-Shaped Oldham Elastic Coupling
Structural Characteristics:
1. The main boby is made of high strength aluminum alloy.
2. Zero backlash, suitable for forward and reverse rotaton.
3. Colloid is made of polyurethane, which has good wear resistance.
4. Oil resistance and electrical insulation, the middle elastic body can absorb vibration.
5. Compensate radial, angular and axial deviations.
6. Removable design for easy installation.
7. Clamping screw tightening method.
Installation Note：
1. When installing a single cross axis universal coupling, the main and driven end angle speeds vary, the main and driven axes can not be kept in sync, and their out-of-syncity varies with the β angle.
2. To achieve the same angular speed and synchronous rotation, a double-cross-axis universal coupling should be installed or used by a combination of two single-cross-axis universal couplings and an intermediate shaft.

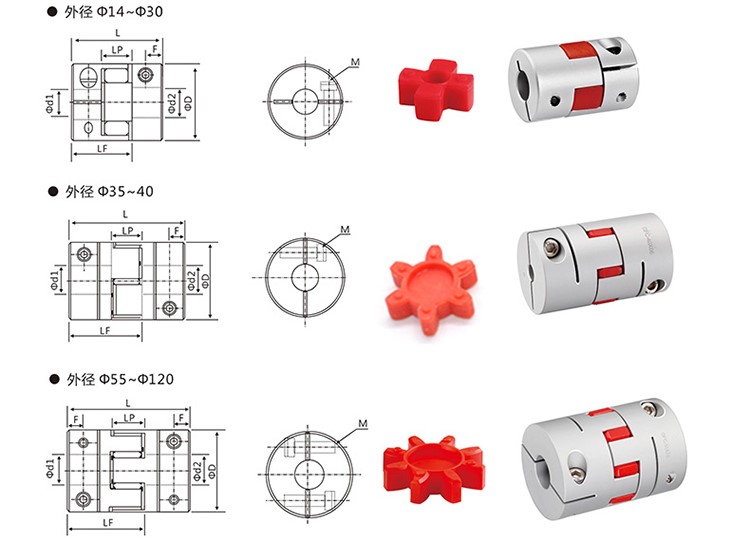

Drawings：

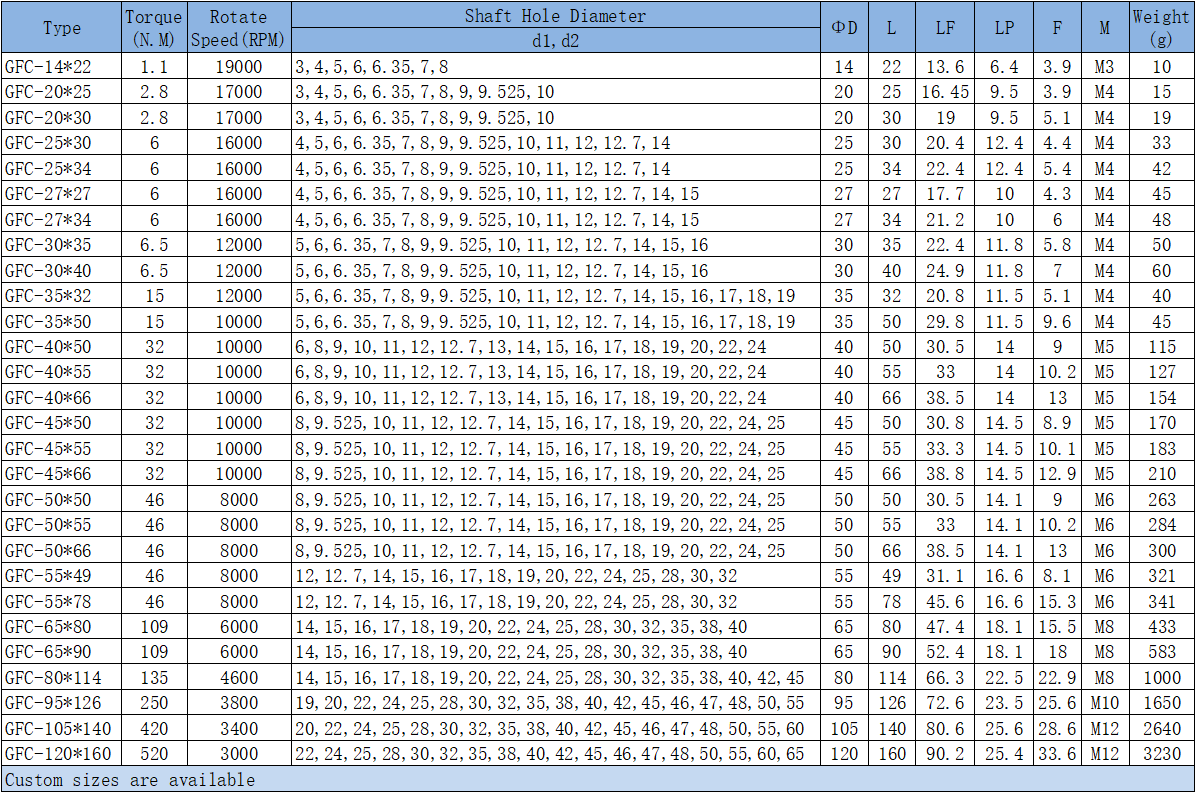

Parameter Sheets：
