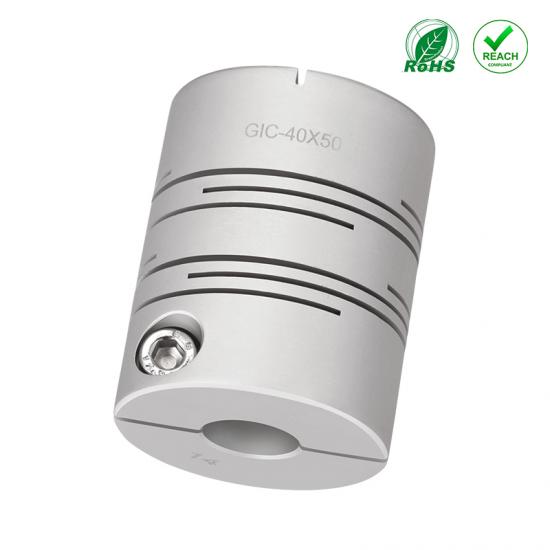

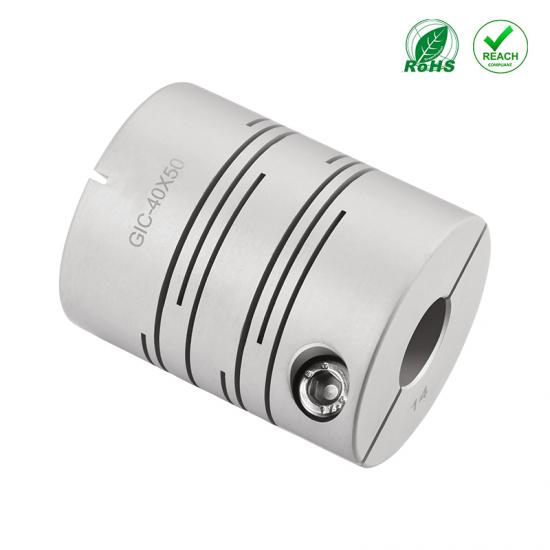

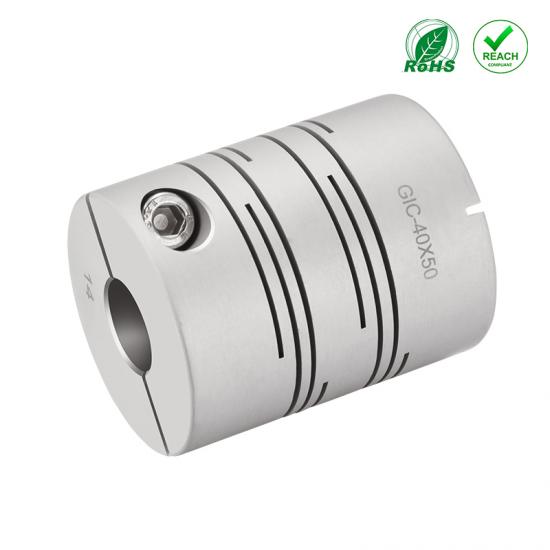

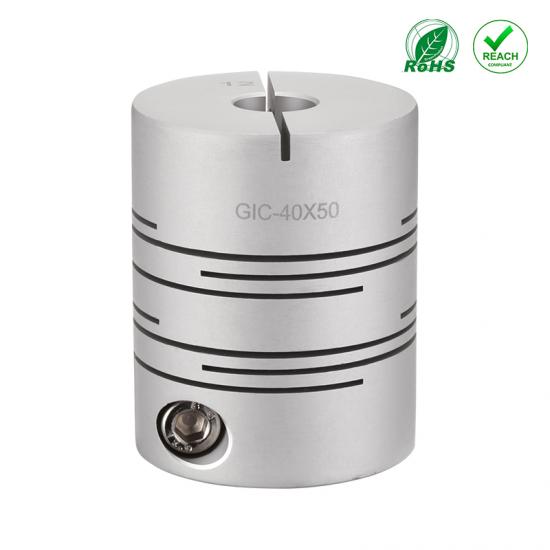

GIC Aluminum Alloy Parallel Clamp Rigid Coupling
Structural Characteristics:
1. Integrated structure, the overall use of high-strength aluminum alloy materials.
2. With buffering, elastic function compensates for radial, angular, and axial deviations.
3. Gap-free shaft and bushing connections for forward and reverse.
4. Clamping screw fastening mode.
Installation Note：
1. When installing a single cross axis universal coupling, the main and driven end angle speeds vary, the main and driven axes can not be kept in sync, and their out-of-syncity varies with the β angle.
2. To achieve the same angular speed and synchronous rotation, a double-cross-axis universal coupling should be installed or used by a combination of two single-cross-axis universal couplings and an intermediate shaft.

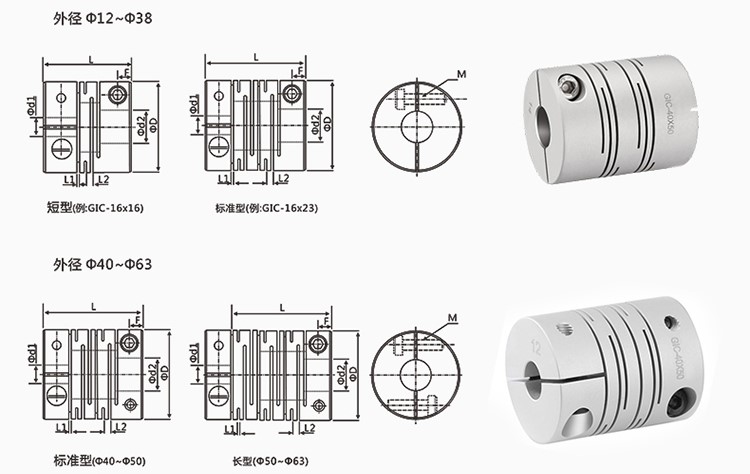

Drawings：

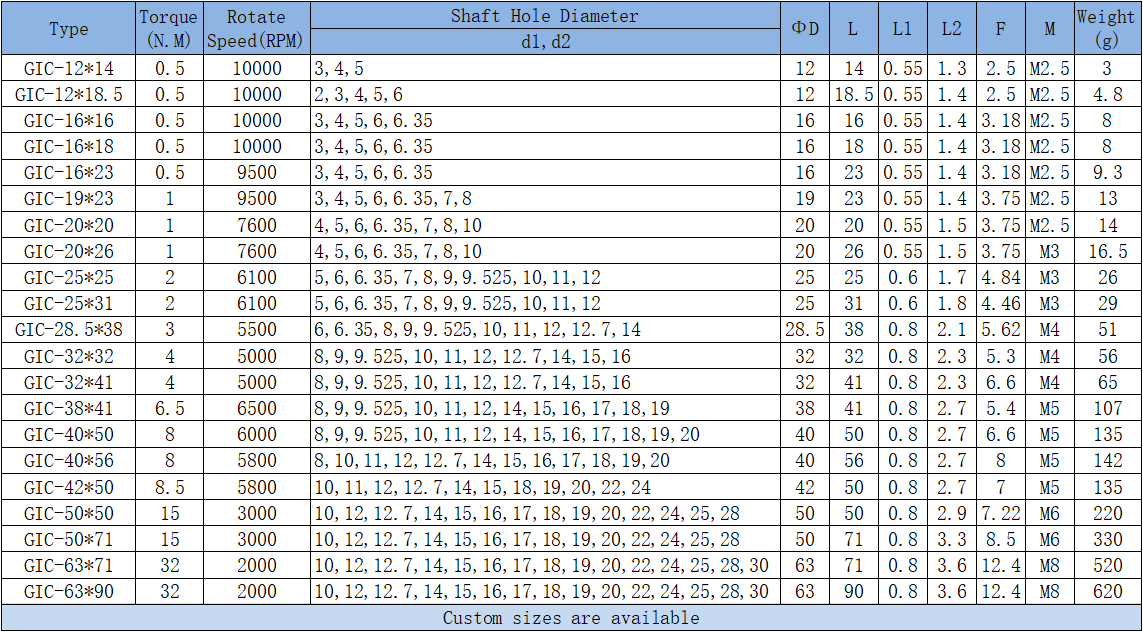

Parameter Sheets：
