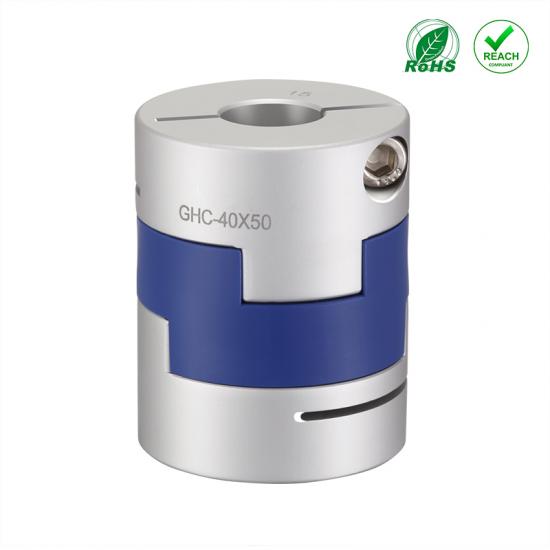

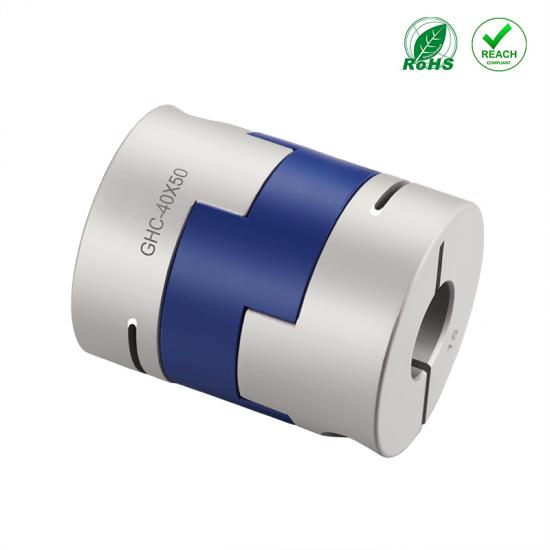

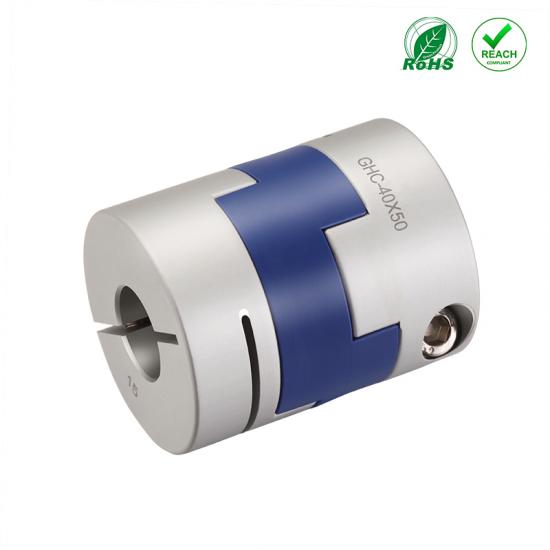

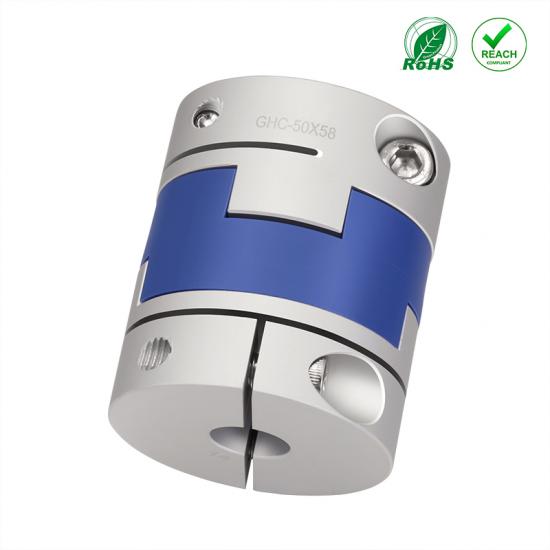

GHC Aluminum Alloy Cross Slider Clamp Coupling
Structural Characteristics:
1. Intermediate elastomer materials are made of PA66 material and are well resistant to wear, corrosion and electrical insulation.
2. Sliding designs compensate for radial and angular deviations more effectively.
3. Detachable design for easy installation.
4. Clamping screw fastening mode.
Installation Note：
1. When installing a single cross axis universal coupling, the main and driven end angle speeds vary, the main and driven axes can not be kept in sync, and their out-of-syncity varies with the β angle.
2. To achieve the same angular speed and synchronous rotation, a double-cross-axis universal coupling should be installed or used by a combination of two single-cross-axis universal couplings and an intermediate shaft.

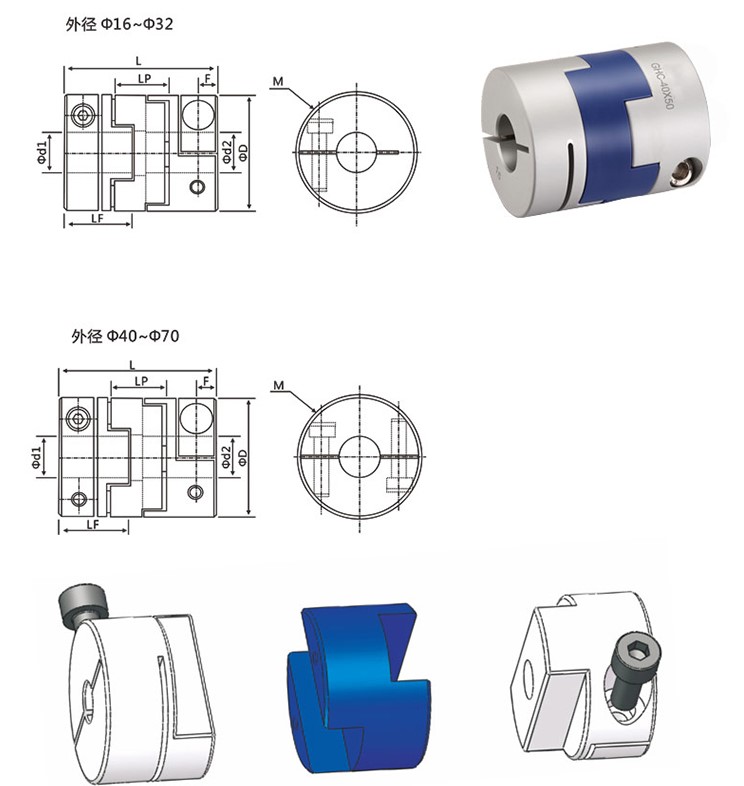

Drawings：

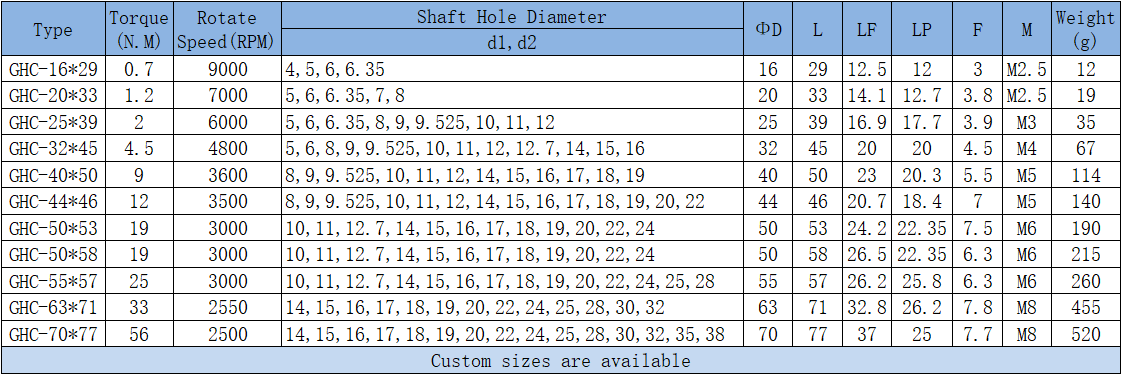

Parameter Sheets：
