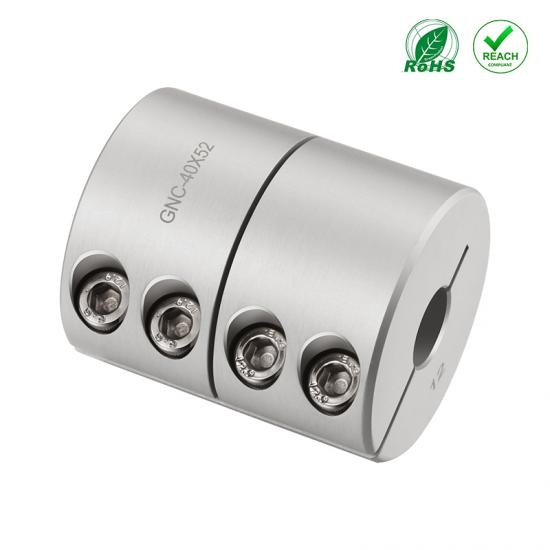

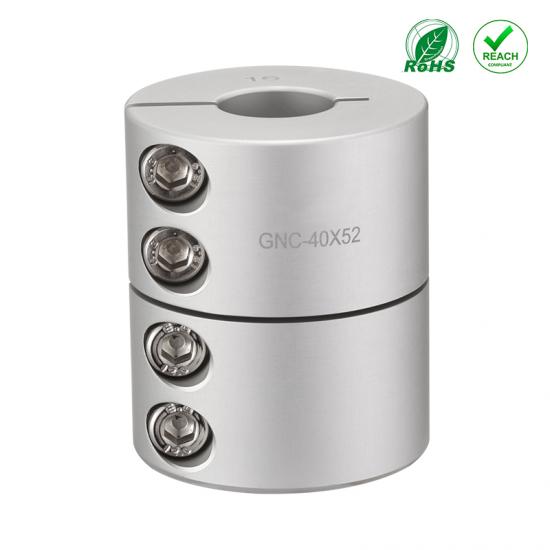

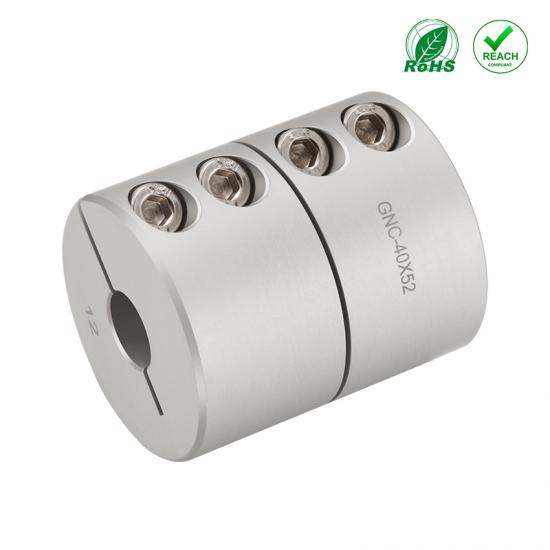

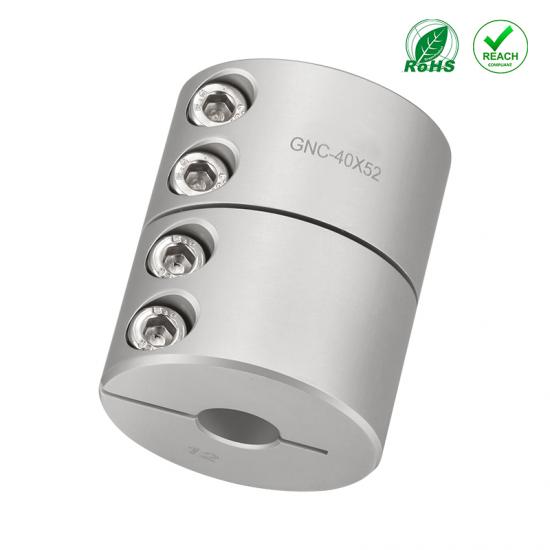

GNC Aluminum Alloy Rigid Clamp Coupling
Structural Characteristics:
1. Integrated structure, the overall use of high-strength aluminum alloy materials.
2. High torque, high rigidity.
3. Rigid couplings do not allow offsets and must be used with adequate eccentric adjustment
4. Clamping screw fastening mode.
Installation Note：
1. When installing a single cross axis universal coupling, the main and driven end angle speeds vary, the main and driven axes can not be kept in sync, and their out-of-syncity varies with the β angle.
2. To achieve the same angular speed and synchronous rotation, a double-cross-axis universal coupling should be installed or used by a combination of two single-cross-axis universal couplings and an intermediate shaft.

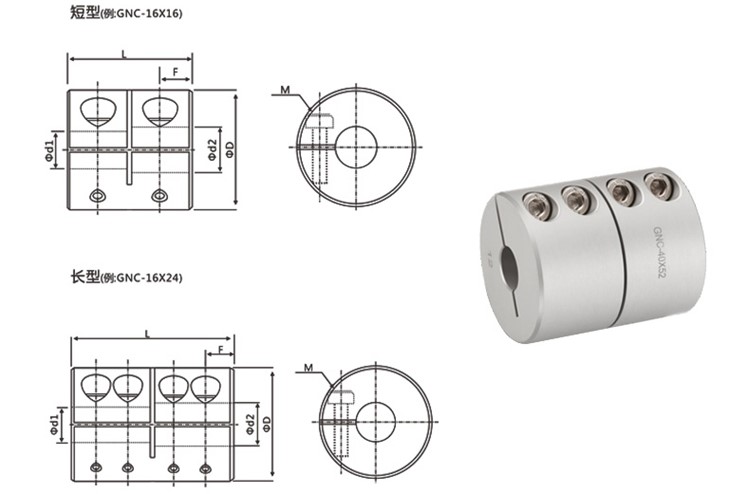

Drawings：

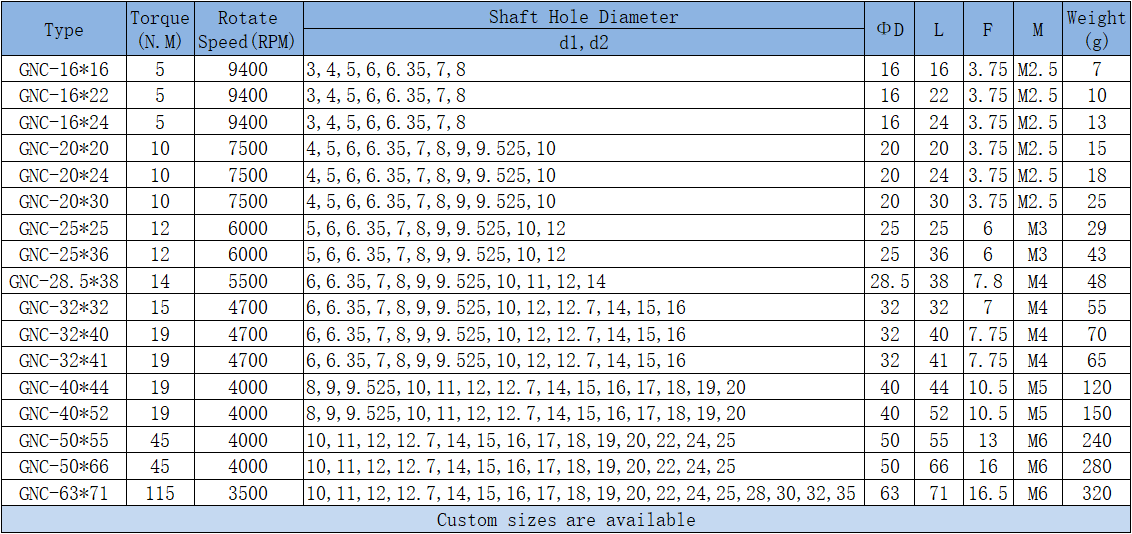

Parameter Sheets：
