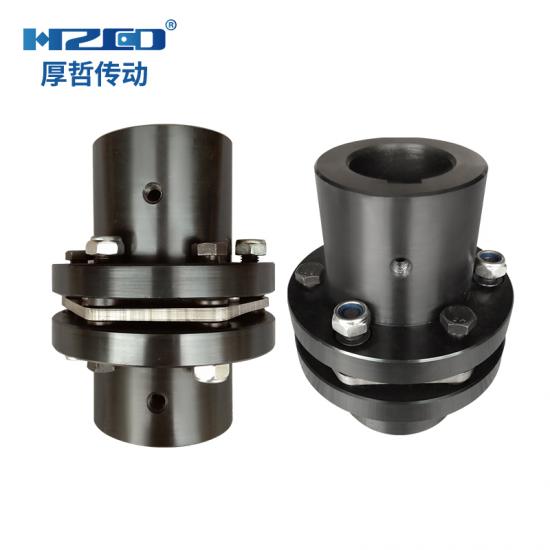

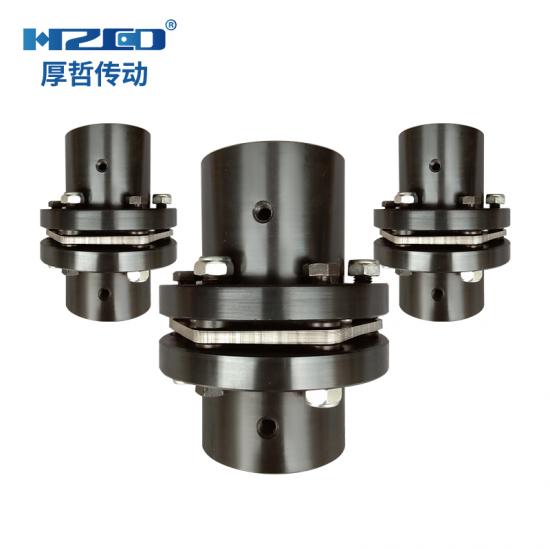

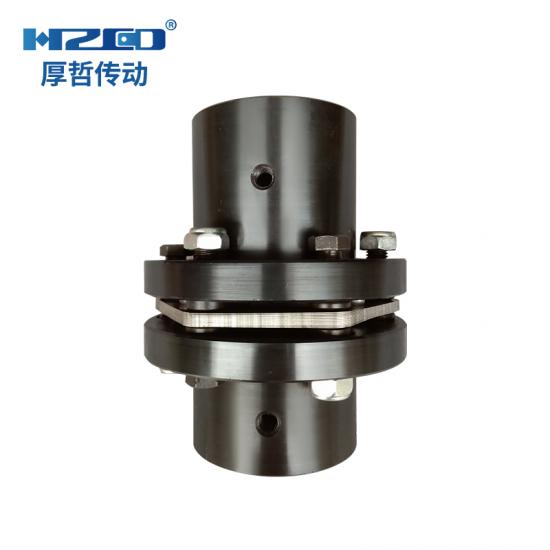

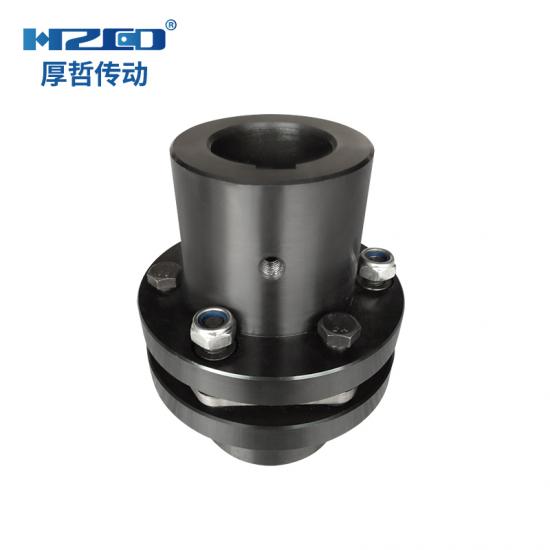

DJM Key Connect Single Elastic Diaphragm Coupling

Diaphragm Couplings With High Reliability and Long life.
  • Brand:

    HZCD
  • Item NO.:

    KDJM
  • Payment:

    EXW, FOB, CNF
  • Product Origin:

    FOSHAN, CN
  • Lead Time:

    15 DAYS
  • Order(MOQ):

    10

DJM Key Connect Single Elastic Diaphragm Coupling


Structural Characteristics:

1. Eccentricity allows a wide range and can be applied flexibly to a variety of drivetrains.

2. Disassembly is quick and highly repetitive.

3. No lubrication, no noise, no wear, no sliding and friction, the transmission components can reduce energy loss.

4. The structure is simple and lightweight.

5. No maintenance is required and faults can be checked with the naked eye during downtime.

6. Good environmental adaptability, can operate at high temperatures.

7. High transmission accuracy, high reliability and long life.


Installation Note:

1. When installing a single cross axis universal coupling, the main and driven end angle speeds vary, the main and driven axes can not be kept in sync, and their out-of-syncity varies with the β angle.

2. To achieve the same angular speed and synchronous rotation, a double-cross-axis universal coupling should be installed or used by a combination of two single-cross-axis universal couplings and an intermediate shaft.

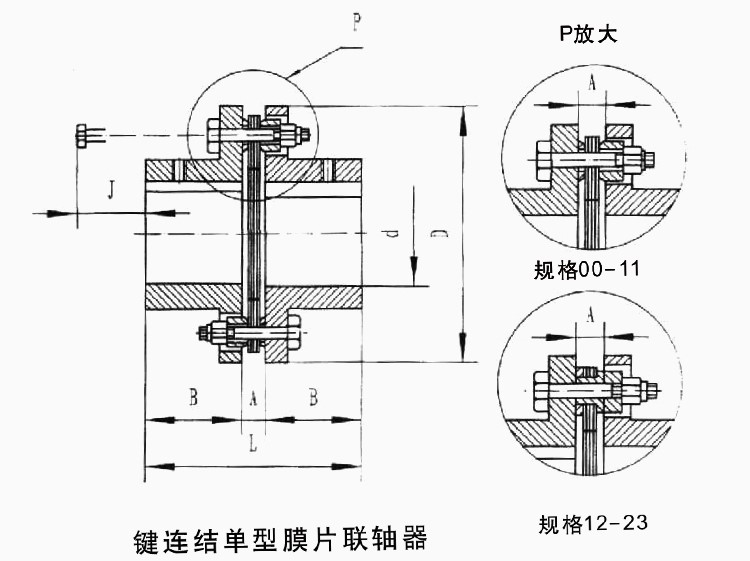

Drawings:

Diaphragm Coupling Drawings

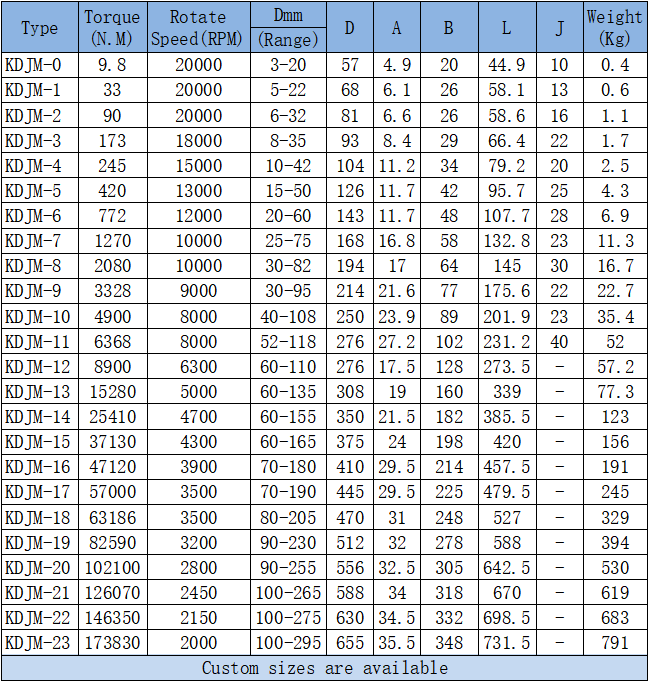

Parameter Sheets:

diaphragm coupling parameters
