Universal Joint

LM Plum-Shaped Elastic Coupling Joint

Elastic Couplings With High Rotate Speeds
  • Brand:

    HZCD
  • Item NO.:

    LM
  • Payment:

    EXW, FOB, CNF
  • Product Origin:

    FOSHAN, CN
  • Lead Time:

    15 DAYS
  • Order(MOQ):

    10

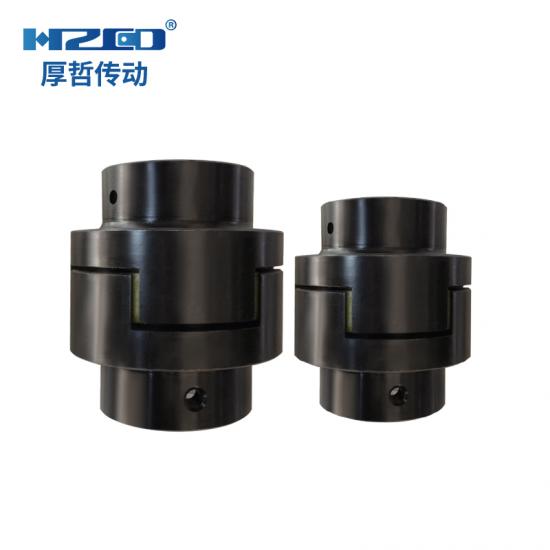

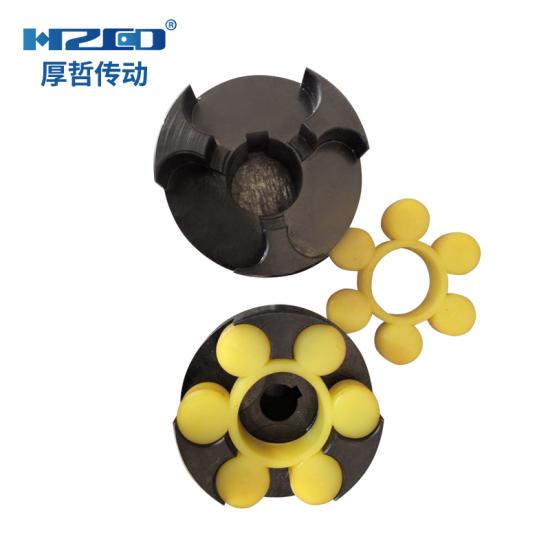

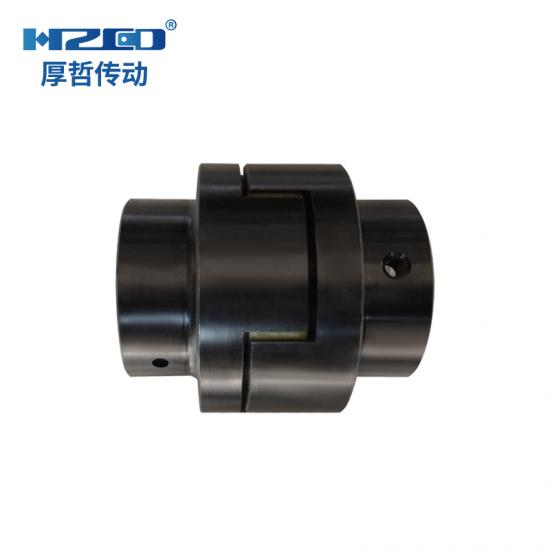

LM Plum-Shaped Elastic Coupling Joint


Structural Characteristics:

1. The structure is simple and easy to disassemble.

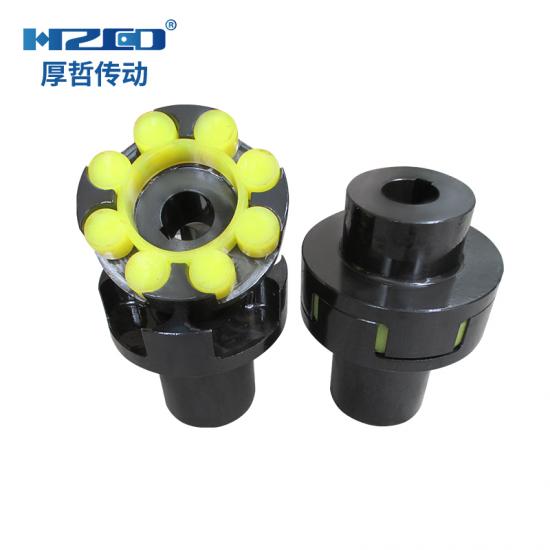

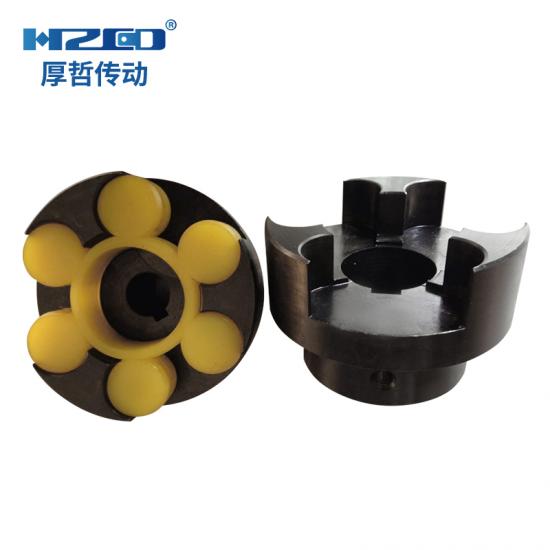

2. Elastic parts are embedded in a gap between the convex teeth on the outer edge of the two halves of the coupling face.

3. With vibration reduction, wear resistance, buffering performance.

4. Operating temperature -30 to 80 degrees.


Installation Note:

1. When installing a single cross axis universal coupling, the main and driven end angle speeds vary, the main and driven axes can not be kept in sync, and their out-of-syncity varies with the β angle.

2. To achieve the same angular speed and synchronous rotation, a double-cross-axis universal coupling should be installed or used by a combination of two single-cross-axis universal couplings and an intermediate shaft.

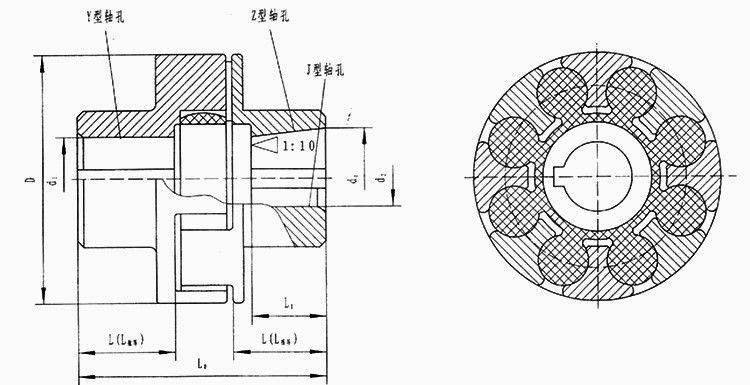

Drawings:

elastic pin coupling drawings

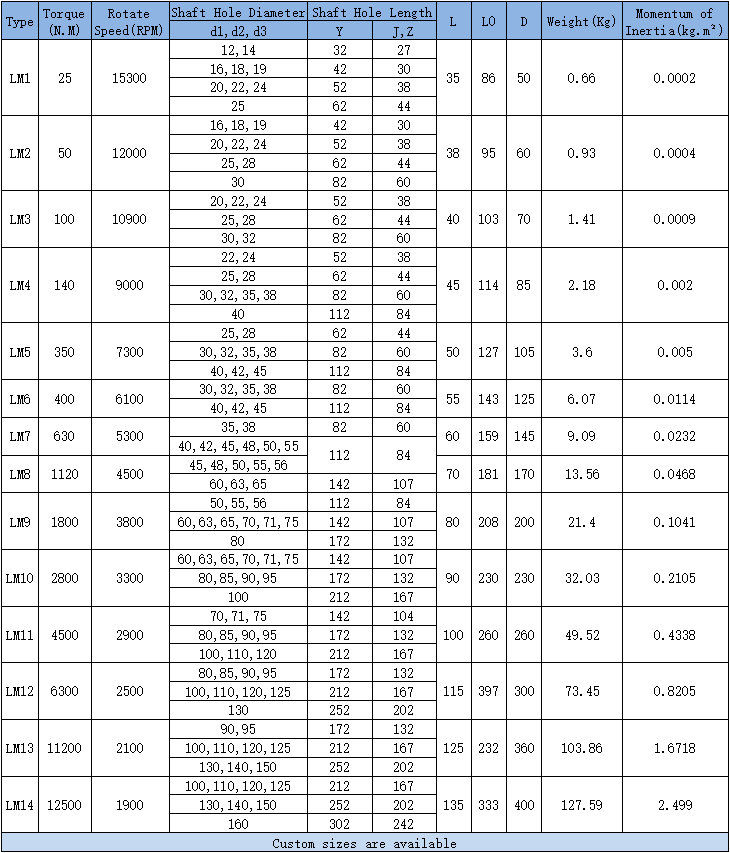

Parameter Sheets:

coupling parameters





Leave A Message
If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as we can.
Related Products
Star Type Elastic Coupling Read More
HZ Star Type Elastic Coupling Joint
Made of S45C Carbon Steel, High Quality Oldham Coupling

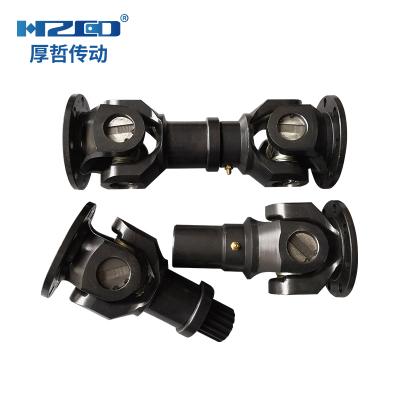

Cross Axis Universal Joint Coupling Read More
