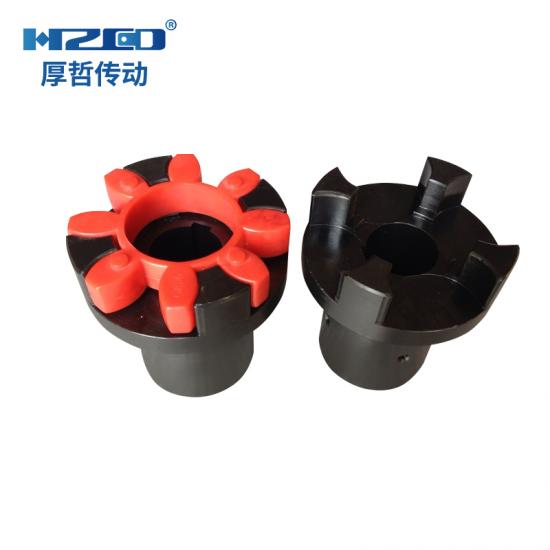

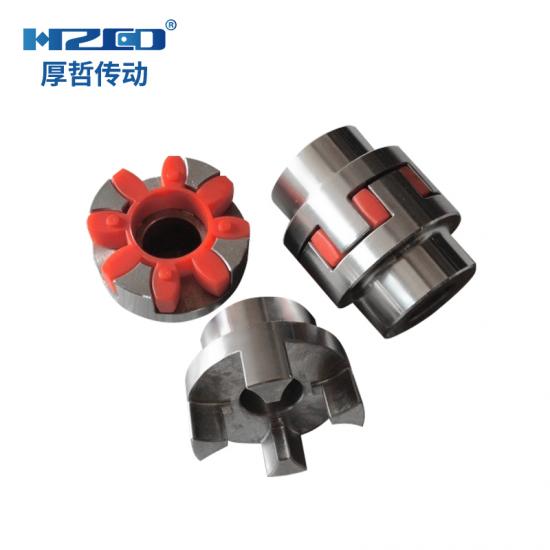

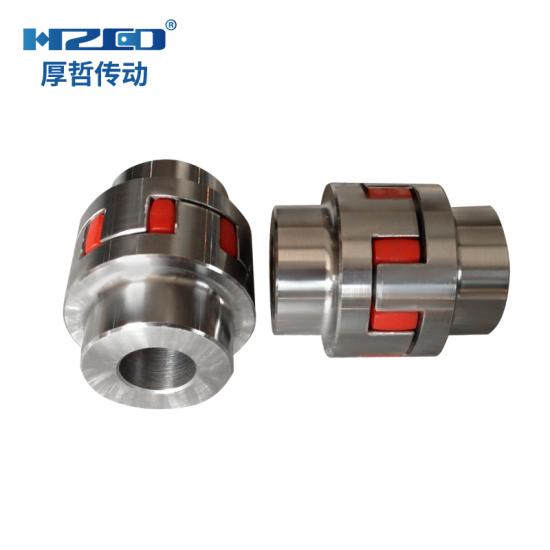

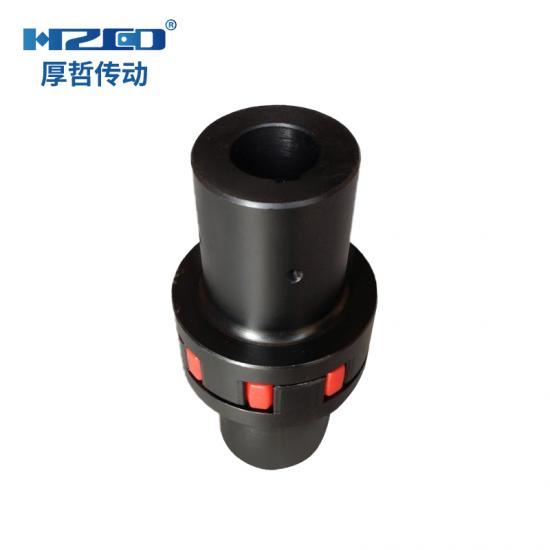

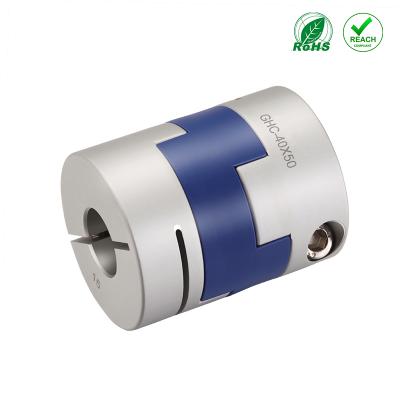

HZ Star Type Elastic Coupling Joint
Structural Characteristics:
1. Compact size and small inertia.
2. The elastic element was made of engineering plastic, which has the properties of punching, vibration reduction, wear resistance, etc.
3. Operating temperatures -35 to 80 degrees, maintenance-free.
4. Elastomers are limited by convex claws to avoid internal deformation due to impact and external deformation due to centrifugal forces.
5. The concave surface of the convex claws is large, so that the surface pressure on the progressively open teeth is very small, and even if the teeth are overloaded, the teeth will not wear or deform.
6. Axial plug-in mounting.
Installation Note：

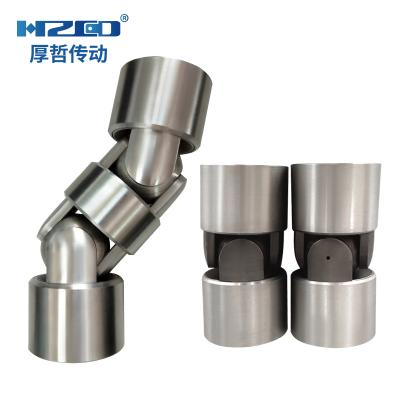

1. When installing a single cross axis universal coupling, the main and driven end angle speeds vary, the main and driven axes can not be kept in sync, and their out-of-syncity varies with the β angle.
2. To achieve the same angular speed and synchronous rotation, a double-cross-axis universal coupling should be installed or used by a combination of two single-cross-axis universal couplings and an intermediate shaft.
Drawings：

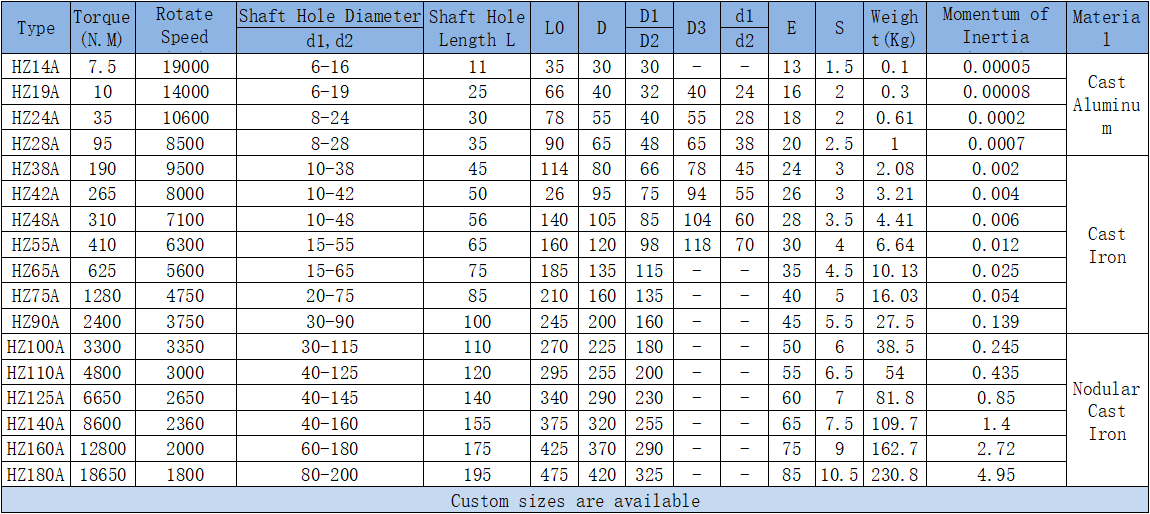

Parameter Sheets：
