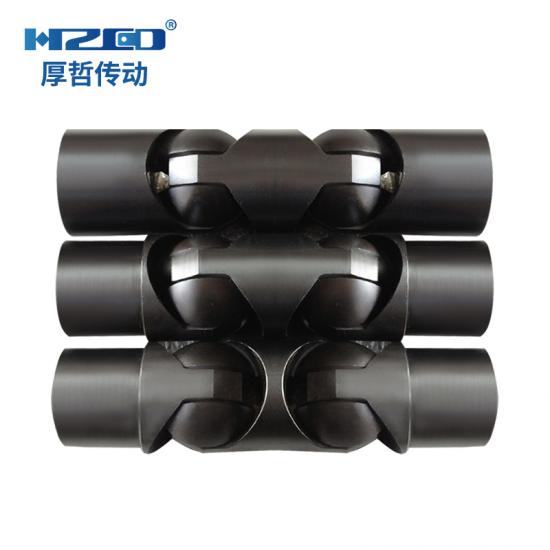

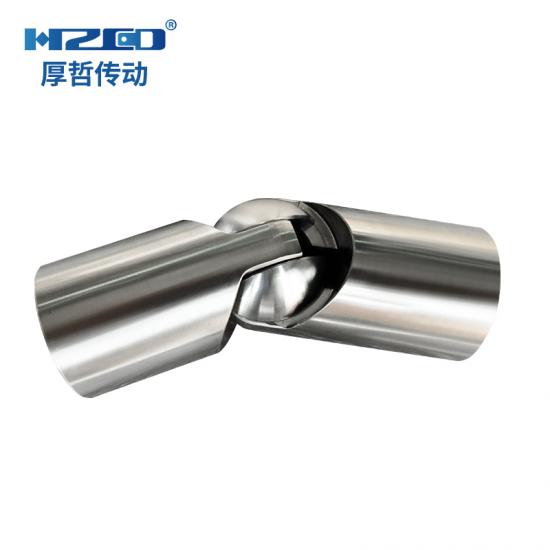

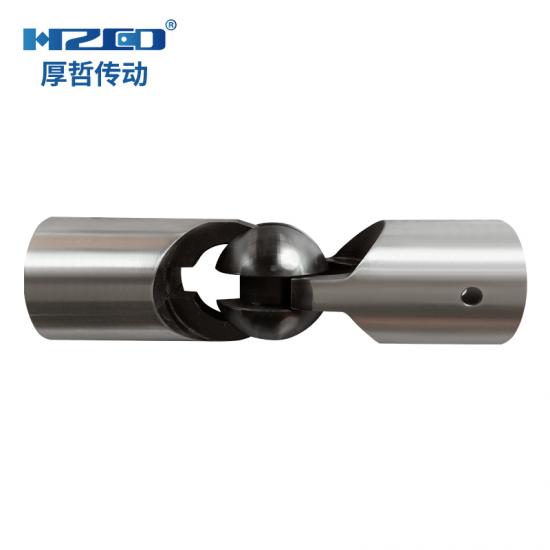

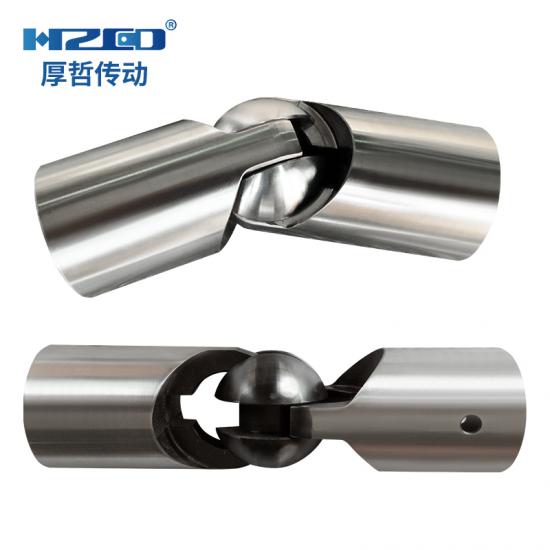

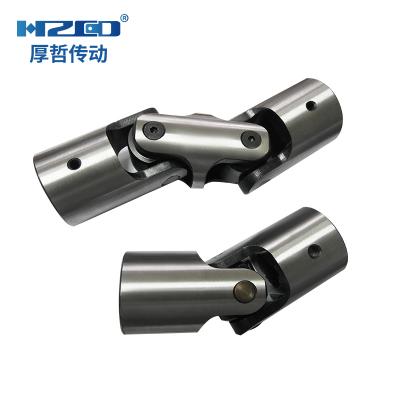

QC Detachable Universal Joint Coupling
Structural Characteristics:
1. Each joint can rotate the angle ≤ 35 degrees, cross-sectional carrying capacity is large, high transmission accuracy.
2. Loading and unloading easier and faster.
3. According to the requirements, it could process key slot, hex hole and quad hole.

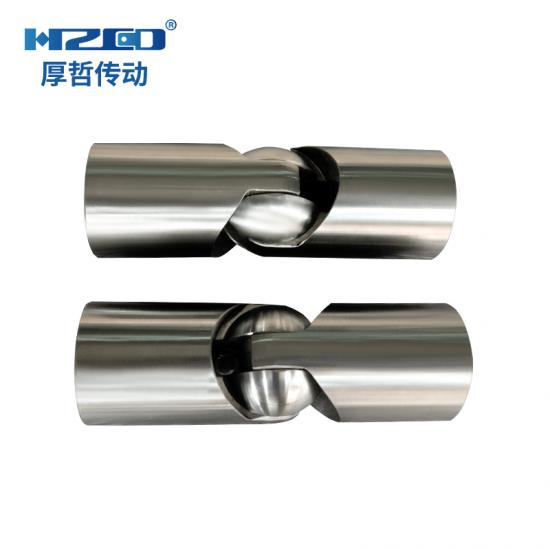

4. The ball and sleeve joints depend on the deflection angle and load and the joints should not be subject to axial pull.
5. In order to ensure trouble-free operation, the head position must be fully lubricated from time to time.
Installation Note：
1. When installing a single cross axis universal coupling, the main and driven end angle speeds vary, the main and driven axes can not be kept in sync, and their out-of-syncity varies with the β angle.

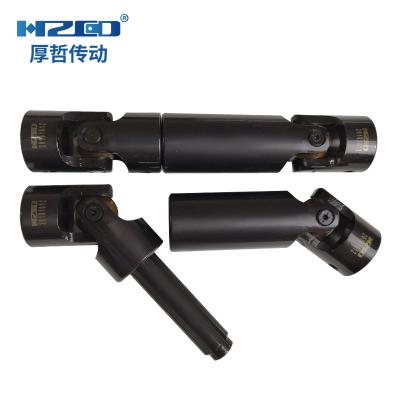

2. To achieve the same angular speed and synchronous rotation, a double-cross-axis universal coupling should be installed or used by a combination of two single-cross-axis universal couplings and an intermediate shaft.

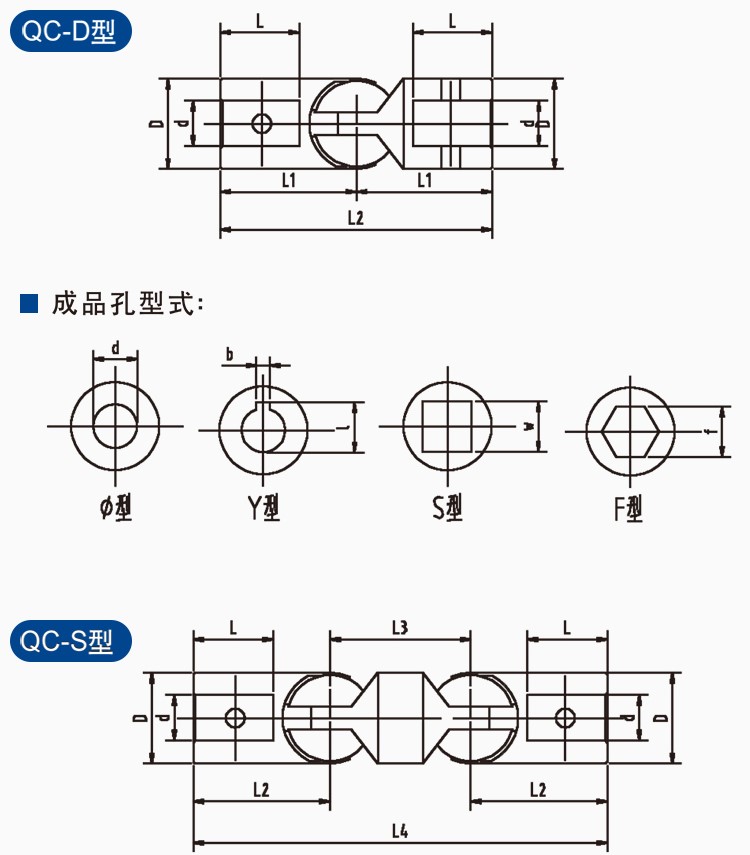

Drawings：

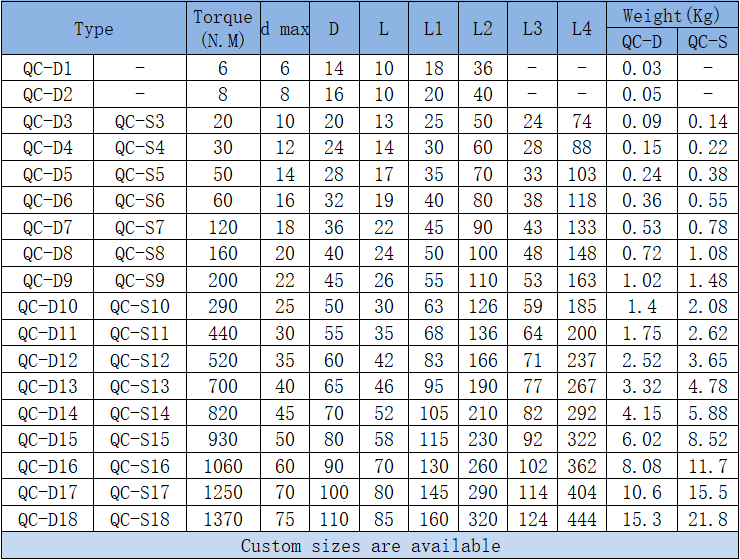

Parameter Sheets：
