Universal Joint

GST Aluminum Slab-Type Single Diaphragm Clamp Coupling

Oldham Coupling Made of SUS304
  • Brand:

    HZCD
  • Item NO.:

    GST
  • Payment:

    EXW, FOB, CNF
  • Product Origin:

    FOSHAN, CN
  • Lead Time:

    15 DAYS
  • Order(MOQ):

    10

GST Aluminum Slab-Type Single Diaphragm Clamp Coupling


Structural Characteristics:

1. Designed for servo, stepper motors.

2. Gap-free shaft and bushing connections for forward and reverse.

3. Low inertia for high-speed operation.

4. The diaphragm is made of stainless steel and has good anti-fatigue properties.

5. Clamping screw fastening mode.


Installation Note:

1. When installing a single cross axis universal coupling, the main and driven end angle speeds vary, the main and driven axes can not be kept in sync, and their out-of-syncity varies with the β angle.

2. To achieve the same angular speed and synchronous rotation, a double-cross-axis universal coupling should be installed or used by a combination of two single-cross-axis universal couplings and an intermediate shaft.

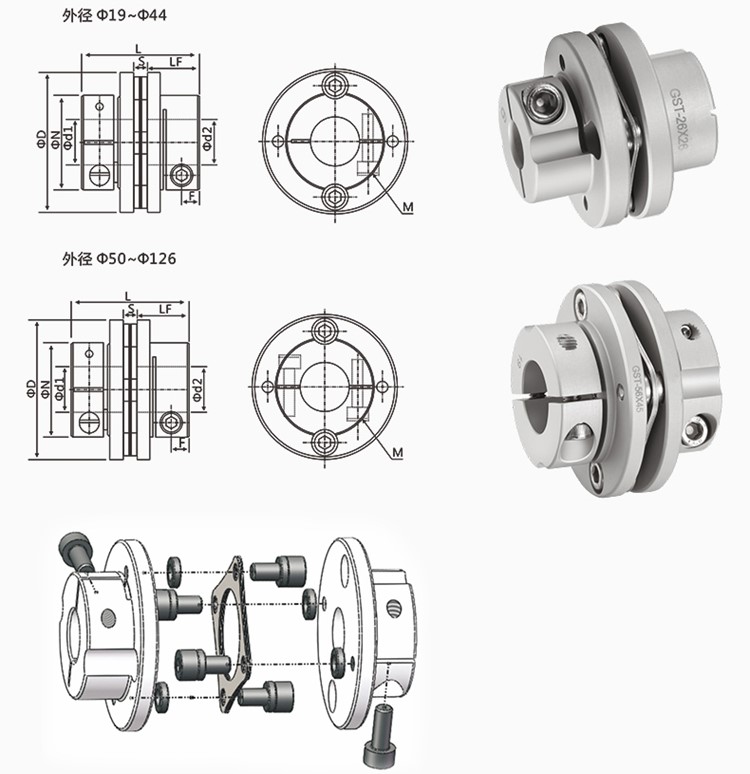

Drawings:

oldham coupling drawings

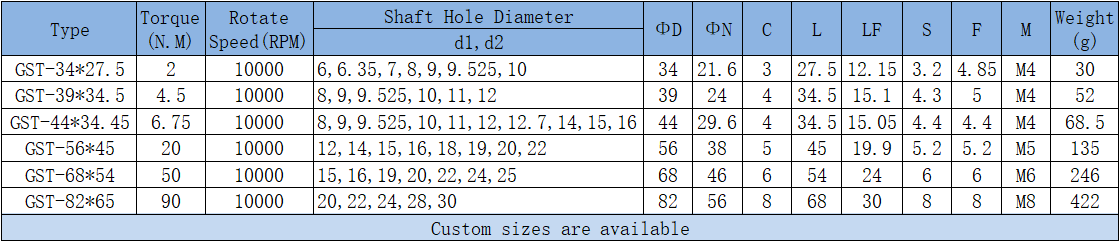

Parameter Sheets:

coupling parameters
